Straight Duct

Non-Flanged Round Duct 8″ – 18″ [152 – 457 mm] Diameter

ITEM#SizePDF
08-25108” x 90" [203 x 2286 mm]PDF
10-251010”x90” [254 x 2286 mm]PDF
12-251012” x 90" [305 x 2286 mm]PDF
14-251014” x 90" [356 x 2286 mm]PDF
16-251016” x 90" [406 x 2286 mm]PDF
18-251018” x 90" [457 x 2286 mm]PDF

Flanged Round Duct 20″ – 48″ [508 – 1219 mm] Diameter

ITEM#SizePDFDWG
20-3510F20” x 8’ [508 x 2438 mm]PDFDWG
24-3510F24” x 8’ [610 x 2438 mm]PDFDWG
30-3510F30” x 8’ [762 x 2438 mm]PDFDWG
36-3510F36” x 8’ [914 x 2438 mm]PDFDWG
48-3510F48” x 6’ [1219 x 1829 mm]PDFDWG

Elbows

Non-Flanged Elbow

Non-Flanged 90° (45°) and Special Angle Elbow 8″ – 18″ [152 – 457 mm] Diameter

ITEM#DescriptionSizePDFDWG
08-2530 8 Inch Non-Flanged BlueDuct Elbow90° (45°)8” [203 mm]PDFDWG
10-2530 10 Inch Non-Flanged BlueDuct Elbow90° (45°)10” [254 mm]PDFDWG
12-2530 12 Inch Non-Flanged BlueDuct Elbow90° (45°)12” [305 mm]PDFDWG
14-2530 14 Inch Non-Flanged BlueDuct Elbow90° (45°)14” [356 mm]PDFDWG
16-2530 16 Inch Non-Flanged BlueDuct Elbow90° (45°)16” [406 mm]PDFDWG
18-2530 18 Inch Non-Flanged BlueDuct Elbow90° (45°)18” [457 mm] PDFDWG

Flanged Elbow

Flanged 90° (45°) and Special Angle Elbow 20″ – 48″ [508 – 1219 mm] Diameter

ITEM#DescriptionSizePDFDWG
20-3530F 20 Inch Flanged BlueDuct Elbow90° (45°)20” [508 mm]PDFDWG
24-3530F 24 Inch Flanged BlueDuct Elbow90° (45°)24” [610 mm] PDFDWG
30-3530F 30 Inch Flanged BlueDuct Elbow90° (45°)30” [762 mm]PDFDWG
36-3530F 36 Inch Flanged BlueDuct Elbow90° (45°)36” [914 mm] PDFDWG
48-3530F 48 Inch Flanged BlueDuct Elbow90° (45°)48” [1219 mm]PDFDWG

Tee/Wye

Tee 8″ – 12″ [203 – 305 mm] Diameter


ITEM#SizePDFDWG
08-2520 8 Inch Tee BlueDuct8” [203 mm]PDFDWG
10-2520 10 Inch Tee BlueDuct10” [254 mm]PDFDWG
12-2520 12 Inch Tee BlueDuct12” [305 mm]PDFDWG

Wye 14″ – 16″ [356 – 406 mm] Diameter ONLY


ITEM#SizePDFDWG
14-2575 14 Inch BlueDuct Wye14” [356 mm]PDFDWG
16-2575 16 Inch BlueDuct Wye16” [406 mm]PDFDWG

Wye 20″ – 48″ [508 – 1219 mm] Diameter


ITEM#SizePDFDWG
20-3575F 20 Inch BlueDuct Wye20” [508 mm]PDFDWG
24-3575F 20-3575F 24 Inch BlueDuct Wye24” [610 mm] PDFDWG
30-3575F 20-3575F 30 Inch BlueDuct Wye30” [762 mm]PDFDWG
36-3575F 20-3575F 36 Inch BlueDuct Wye36” [914 mm]PDFDWG

*Custom Tees available upon request. May require extended lead time.

Reducers

Eccentric Reducers

ITEM#SizePDFDWG
18-2540 BlueDuct Eccentric Reducer18” x 16” x 14” x 12” [457 x 406 x 356 x 305 mm]PDFDWG
20-3541F BlueDuct Eccentric Reducer20” x 18” [508 x 457 mm]PDFDWG
24-3541F BlueDuct Eccentric Reducer24” x 20” [610 x 508 mm]PDFDWG
24-3543F BlueDuct Eccentric Reducer24” x 20” x 18” x 16” [610 x 508 x 457 x 406 mm]PDFDWG
36-3543F BlueDuct Eccentric Reducer36” x 30” x 24” [914 x 762 x 610 mm]PDF

Concentric Reducers

ITEM#SizePDFDWG
08-2503 Reducer BlueDuct8.75" x 8" PDF
10-2540 10x8 Inch Concentric Reducer10" x 8" [254 x 203 mm]PDFDWG
12-2547 12x10x8x6 Inch Concentric Reducer12” x 10” x 8” x 6” [305 x 254 x 203 x 152 mm]PDFDWG
16-2547 16x14x12x10 Inch Concentric Reducer16” x 14” x 12” x 10” [406 x 356 x 305 x 254 mm]PDFDWG

Saddle Reducer, 10″ – 18″ Straight Round

ITEM#SizeFits on DuctPDFDWG
10-2578 BlueDuct Saddle Reducer8" x 6" [203 x 152 mm]10", 12" [254, 305 mm]PDF
12-2577 BlueDuct Saddle Reducer10" x 8" [254 x 203 mm]12" [305mm]PDF
14-2577 BlueDuct Saddle Reducer14" x 12" [356 x 305 mm]14", 16", 18" [356, 406, 457 mm] PDF
16-2577 BlueDuct Saddle Reducer16” x 14” [406 x 356 mm]16", 18" [406, 457 mm]PDF
18-2577 BlueDuct Saddle Reducer18” x 16” [457 x 406 mm]18" [457 mm]PDF

Saddle Reducer, 14″ – 24″ Straight Round

The BlueDuct® Saddle Reducer

ITEM#SizeFits on DuctPDFDWG
12-247710" x 8" [254 x 203 mm]14"- 24" [356-610 mm]
14-247714" x 12" [356 x 305 mm]20", 24" [508, 610 mm]
16-247716” x 14” [406 x 356 mm]20", 24" [508, 610 mm]
18-247718” x 16” [457 x 406 mm]20", 24" [508, 610 mm]

Saddle Reducer, 30″ – 36″ Straight Round

ITEM#SizeFits on DuctPDFDWG
08-26778" [203 mm]30", 36" [762, 914 mm]
10-267710" [254 mm]30", 36" [762, 914 mm]
12-267712” [305 mm]30", 36" [762, 914 mm]

Spool Duct Reducer Assemblies*

The BlueDuct® Spool Pipe Reduer Assemblies

ITEM#SizeFits on DuctPDFDWG
16-307716” x 14” [406 x 356 mm]30" [762 mm]
18-307718” x 16” [457 x 406 mm]30" [762 mm]
16-367716” x 14” [406 x 356 mm]36" [914 mm]
18-367718” x 16” [457 x 406 mm]36" [914 mm]

*May require extended lead time.

Boots

Center Saddle Boot

ITEM#SizeBoot SizeFits on PipePDFDWG
08-2570 8 Inch Saddle Boot BlueDuct8” [203 mm]4" x 12" [102 x 305 mm]8” [203 mm]PDFDWG
10-2570 10 & 12 Inch Saddle Boot BlueDuct10” [254 mm]4" x 12" [102 x 305 mm]10", 12", 14', 16", 18" [254, 305, 356, 406, 457 mm] PDFDWG

Offset Saddle Boot

ITEM#SizeBoot SizeFits on PipePDFDWG
10-2550 10 Inch Offset Saddle Boot BlueDuct10” [254 mm]4" x 12" [102 x 305 mm]10” [254 mm]PDF
12-2550 12 - 18 Inch Offset Saddle Boot BlueDuct12” [305 mm]4" x 12" [102 x 305 mm]12", 14', 16", 18" [305, 356, 406, 457 mm]PDFDWG
12-2551 12 - 18 Inch Offset Saddle Boot BlueDuct12” [305 mm]4" x 24" [102 x 610 mm]12", 14', 16", 18" [305, 356, 406, 457 mm]PDFDWG

90° Boot

ITEM#SizeBoot SizePDFDWG
08-2502 90 Degree Boot BlueDuct8" [203 mm]4" x 12" [102 x 305 mm]PDFDWG

16″ Boot Extension

ITEM#SizePDFDWG
20-0050 BlueDuct Boot Extension4" x 12" x 16"
[102 x 305 x 406 mm]		DWG

Diffusers

Linear Diffuser Boxes and Adaptor

The BlueDuct® Diffuser
Two Linear Diffuser Adaptors Fit on a 48″ [1219 mm].

ITEM#SizeOuter DimensionRegister Size
20-0058 (LDA)36" x 30" [914 x 762 mm]Fits on 36", 48" [914 x 1219 mm]
20-0060 (LDA)23” x 20” x 6” [584 x 508 x 152 mm]Fits on 24”, 36”, 48” [610, 914, 1219 mm]
20-006324” [610 mm]25” x 7” x 8” [635 x 178 x 203 mm]24” x 6” [610 x 152 mm]
20-006236” [914 mm]37” x 7” x 8” [940 x 178 x 203 mm]36” x 6” [914 x 152 mm]
20-0061*48” [1219 mm]49” x 7” x 8” [1245 x 178 x 203 mm]48” x 6” [1219 x 152 mm]
20-0064*48” [1219 mm]49” x 7” x 8” [1245 x 178 x 203 mm]48” x 8” [1219 x 203 mm]
20-0065*48” [1219 mm]49” x 7” x 8” [1245 x 178 x 203 mm]48” x 10” [1219 x 254 mm]

*Size dependent on mounting configuration.

Universal Boot Style Diffuser Adapter & Boxes

The BlueDuct® Diffuser



90º Boot Universal Reducer Adaptor

The BlueDuct® Diffuser

ITEM#SizeRegister Size
20-005990º Boot Universal Reducer Adaptor10”x 8” [254 x 203 mm]
20-041414” [356 mm]14“x 4” [356 x 102 mm]
20-041616” [406 mm]16” x 4” [406 x 102 mm]
20-041818” [457 mm]18” x 4” [457 x 102 mm]
20-042424” [610 mm]24” x 4” [610 x 102 mm]
20-0614*14” [356 mm]14” x 6” OR 14” x 8” [356 x 152 OR 356 x 203 mm]
20-0616*16” [406 mm]16” x 6” OR 16” x 8” [406 x 152 OR 406 x 203 mm]
20-0618*18” [457 mm]18” x 6” OR 18” x 8” [457 x 152 OR 457 x 203 mm]

Plenums

Plenum*

ITEM#SizePDFDWG
20-0010 BlueDuct Plenum20" x 24" x 36" [508 x 610 x 914 mm]PDF
20-0015 BlueDuct Plenum25" x 30" x 48" [635 x 762 x 1219 mm]PDF

*Custom plenum boxes available upon request. May require extended lead time.

Plenum Adapter

The BlueDuct® Plenum Adapter

ITEM#SizePDFDWG
08-25608" [203 mm]
10-256010" [254 mm]PDFDWG
12-256012" [305 mm]PDF DWG
14-256014" [356 mm]PDFDWG
16-256016" [406 mm]PDFDWG
18-256018" [457 mm]PDFDWG

End Caps

End Caps

The BlueDuct® End Caps

ITEM#SizePDFDWG
08-25118" [203 mm]
10-251110" [254 mm]
12-251112" [305 mm]
14-251114" [356 mm]
16-251116" [406 mm]
18-251118" [457 mm]
20-2511F20" [508 mm]
24-2511F24" [610 mm]
20-3511F20" [508 mm] Pipe with (1) End Left On
24-3511F24" [610 mm] Pipe with (1) End Left On
30-3511F30" [762 mm] Pipe with (1) End Left On
36-3511F36" [914 mm] Pipe with (1) End Left On

Dampers

Cable Operated Dampers

The BlueDuct® Damper
Cable Operated Damper Assemblies

ITEM#SizePDFDWG
08-0071(1) 08-2560 + 8" [203 mm] Damper
10-0071(1) 10-2560 + 10" [254 mm] Damper
12-0071(1) 12-2560 + 12" [305 mm] Damper
14-0071(1) 14-2560 + 14" [356 mm] Damper

Accessories

Sealant

The BlueDuct® Sealant

ITEM#Quantity
20-07111

Bag of Bolts for Flanged Connections

The BlueDuct® Bolts

ITEM#SizeQuantity
20-00243" x 5/16" SSBox of 60

Screws

The BlueDuct® Screws

ITEM#SizeFits on Linear DiffuserQuantity per Bag
20-00251-1/4" SS Saddle Screws25
20-00262-1/4" Plenum Adapter Screws14", 16", 18" [356 x 406 x 457 mm]25
20-00292" Bolts and Screws for Saddle ReducersUsed with 30", 36" [762, 914 mm] Saddle Reducers6 Bolts, 4 Screws

Clamps & Gasket Sets

The BlueDuct® Clamps & Gaskets

ITEM#SizeWidthQuantity per Box
08-00808” [203 mm]5” [127 mm]10
10-008010” [254 mm]5” [127 mm]10
12-008112” [305 mm]6” [152 mm]10
14-008114” [356 mm]6” [152 mm]5
16-008116” [406 mm]6” [152 mm]5
18-008118” [457 mm]6” [152 mm]5
20-008120” [508 mm]6” [152 mm]1
24-008124” [610 mm]6” [152 mm]1
30-008130” [762 mm]6” [152 mm]1
36-008136” [914 mm]6” [152 mm]1
48-0081 48” [1219 mm]6” [152 mm]1

Foam Trench Block

The BlueDuct&reg Foam Block
18″ [457 mm] Blocks for Flanged Product 20″ – 48″ [508 – 1219 mm]

ITEM#SizeQuantity
20-00273" x 4" x 12" [76 x 102 x 305 mm]36 per Box
20-00285" x 4" x 18" [127 x 102 x 457 mm]36 per Box

Alignment Pins

The BlueDuct® Alignment Pins

ITEM#Quantity
20-01514 per Box

Flange Cutter & Saw

The BlueDuct® Saw

ITEM#Size
20-01418-1/4" [210 mm] Circular Saw with Cutting Jig

Alignment Ratchet Straps

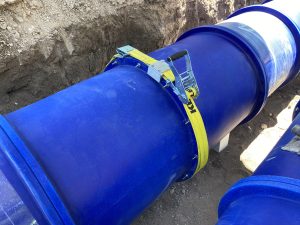

Ratchet Strap AQCUsed to align flanged duct and fittings.

ITEM#Size
20-015220", 24" [508, 610 mm]
20-015330", 36" [762, 914 mm]
20-015448" [1219 mm]

Tools are highly recommended for installation of 20″ – 48″ [508 – 1219 mm] duct.
Full credit is issued for tools once returned to AQC Warehouse in good working condition.
Tools can also be purchased for use on future projects.
